Don't get me wrong, I didn't grew tired of Arduino's Serial Monitor. It's an immensely useful tool that comes bundled with the IDE. No argue about that. Evidently, here's where I end my hail and start ranting. Say you'd want to intercept the serial output and parse it in real-time. You'd rather save it to file instead of watching it scroll. You just might not have the Arduino IDE installed on the machine doing the serial monitoring. Whatever the reason, you often end-up needing a custom solution, much like I did.
This is where the Arduino Web Console comes onto the stage. The app was built with NodeJS and features the SerialPort module. Once started, it creates a HTTP server that listens to client requests on port 8000. You can point your favorite browser to http://localhost:8000/ and get unrestricted access to the app's interface.

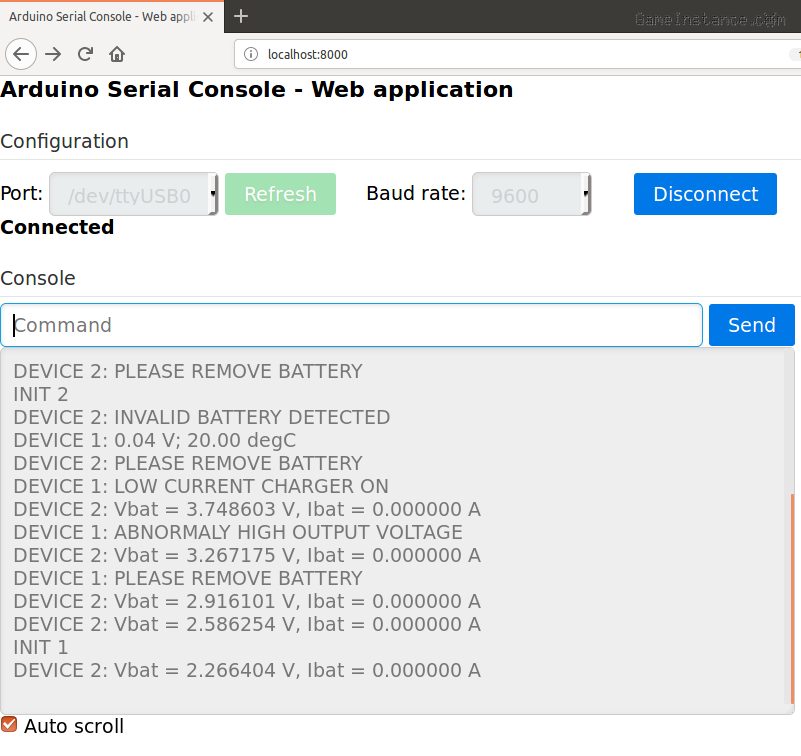

So far it looks exactly like the Serial Monitor. However, out of the box, a log file is created to the preset location every time a serial port is open. All dumped lines are saved in plain text format into that file. The nice part starts from here on.
You can modify the app to suit your project needs. One may create a data parser to extract and display some real-time parameters, create alerts or self-evolving charts. The potential is limitless. Some may say that Arduino IDE code may be forked and extended likewise. That would be correct but altering and recompiling a sizable code base isn't always fun.
Why not
Why didn't I use C++? Well, C/C++ has its place in resource constrained systems and time critical applications. The serial logger doesn't fall in any of those categories. Besides, the C++ Boost-STL-wxWidgets code will likely be more that twice as hard to maintain. With C/C++ there's always the hassle of compiling or installing each dependency in its own overly complicated way, whereas the NodeJS installation is as simple as apt-get install and the only dependency needed can be brought in using npm install. I'm deliberately avoiding the C++ vs. NodeJS battleground.
Okay. So, why not Python? Oh, c'mon!
Setup
1. First of, you have to install NodeJS. There are some comprehensive, yet different guides on the internet but I recommend the official one.
2. Then you need the SerialPort module. Just type: npm install serialport and you're all set.
3. Now get the latest version of the Arduino Web Console script from Github and start playing with it. For convenience, I've added the code below:
/* * Arduino Web Console * * GameInstance.com * 2018 * * Details: https://www.gameinstance.com/post/62/Arduino-Web-Console * * Relies on NodeJS: https://nodejs.org/en/ * and SerialPort: https://www.npmjs.com/package/serialport * UI powered by JX: http://openjs.com/scripts/jx/ * and PureCSS: https://purecss.io/ */ const fs = require('fs'); const http = require('http'); const SerialPort = require('serialport'); const http_port = 8000; const log_path = '~/'; var extractContent = function (data, begin_pattern, end_pattern) { // var marker = data.indexOf('DATA_BUCKET', 2000); if (marker < 0) { // return ["Error: No content marker ", '']; } // var start = data.indexOf(begin_pattern, marker); if (start < 0) { // return ["Error: No content starting with " + begin_pattern, '']; } // var stop = data.indexOf(end_pattern, start + 1); if (stop < 0) { // return ["Error: No content ending with " + end_pattern, '']; } // return ['', data.toString().substr(start + begin_pattern.length, stop - start - begin_pattern.length)]; }; var fileName; var fileDescriptor; var serial_port; var port_path, port_baud, port_opened = false; var serial_data = []; const server = http.createServer(function (req, res) { // if (req.url == '/') { // res.writeHead(200, {'Content-Type': 'text/html'}); fs.readFile(__filename, function (err, data) { // if (err) { // res.write("Error: failed reading file: " + err); res.end(); return; } // var r = extractContent(data, 'MAIN_PAGE', 'MAIN_PAGE_END'); if (r[0]) { // res.write(r[0]); res.end(); return; } // res.write(r[1]); res.end(); }); return; } if (req.url == '/js/ajax') { // res.writeHead(200, {'Content-Type': 'text/javascript'}); fs.readFile(__filename, function (err, data) { // if (err) { // res.write("Error: failed reading file: " + err); res.end(); return; } // var r = extractContent(data, 'AJAX_SCRIPT', 'AJAX_SCRIPT_END'); if (r[0]) { // res.write(r[0]); res.end(); return; } // res.write(r[1]); res.end(); }); return; } if (req.url == '/js') { // res.writeHead(200, {'Content-Type': 'text/javascript'}); fs.readFile(__filename, function (err, data) { // if (err) { // res.write("Error: failed reading file: " + err); res.end(); return; } // var r = extractContent(data, 'JS_SCRIPT', 'JS_SCRIPT_END'); if (r[0]) { // res.write(r[0]); res.end(); return; } // res.write(r[1]); res.end(); }); return; } if (req.url == '/css') { // res.writeHead(200, {'Content-Type': 'text/css'}); fs.readFile(__filename, function (err, data) { // if (err) { // res.write("Error: failed reading file: " + err); res.end(); return; } // var r = extractContent(data, 'PURE_CSS', 'PURE_CSS_END'); if (r[0]) { // res.write(r[0]); res.end(); return; } // res.write(r[1]); res.end(); }); return; } if (req.url.substr(0, 7) == '/serial') { // var p = req.url.split('|'); // console.log(p); switch (p[1]) { // case 'list': { // SerialPort.list(function (err, ports) { // if (err) { // res.write('Error listing ports: ' + err); res.end(); return; } // var v = []; for (var i = 0; i < ports.length; i ++) { // v.push({ name: ports[i].comName, manufacturer: ports[i].manufacturer, serialNumber: ports[i].serialNumber, }); } res.write(JSON.stringify(v)); res.end(); return; }); break; } case 'status': { // res.write(JSON.stringify({ port: port_path, baud: port_baud, connected: port_opened })); res.end(); break; } case 'open': { // port_path = p[2]; port_baud = parseInt(p[3]); if (!port_path || !port_baud) { // res.write('Error opening port: no or invalid port and baud'); res.end(); break; } // serial_port = new SerialPort(port_path, {autoOpen: false, baudRate: port_baud}); serial_port.open(function (err) { // if (err) { // port_opened = false; res.write('Error opening port: ' + err.message); res.end(); return; } // fileName = new Date().toISOString(); fs.open(log_path + fileName + '.log', 'a', function (err, fd) { // if (err) { // console.error('File Open Error', err); return; } // fileDescriptor = fd; }); port_opened = true; serial_data = []; res.write('Opened'); res.end(); }); serial_port.on('error', function(err) { // console.error('Serial Error', err); }); serial_port.on('data', function(data) { // serial_data.push({data: data, ts: Date.now()}); fs.write(fileDescriptor, data.toString(), function (err) { // if (err) { // console.error('File Write Error', err); return; } }) }); break; } case 'close': { // if (port_path && port_baud) { // serial_port.close(function () { // port_opened = false; fs.close(fileDescriptor, function (err) { // if (err) { // console.error('File Close Error', err); return; } // }); res.write('Closed'); res.end(); return; }); } else { // res.write('Not opened'); res.end(); return; } break; } case 'read': { // if (port_path && port_baud && port_opened) { // var ts = parseInt(p[2]); var v = []; var last_ts; for (var i = 0; i < serial_data.length; i ++) { // if (ts < serial_data[i].ts) { // v.push(serial_data[i].data); last_ts = serial_data[i].ts + 1; } } last_ts = last_ts ? last_ts : ts; res.write(JSON.stringify({data: v.join(''), ts: last_ts})); res.end(); } else { // res.write('Not opened'); res.end(); } break; } case 'write': { // if (port_path && port_baud && port_opened) { // var text = decodeURI(p[2]); serial_port.write(text, function (err) { // if (err) { // res.write("Error: " + err.toString()); res.end(); return; } // res.write("Ok"); res.end(); }); } else { // res.write('Not opened'); res.end(); } break; } default: // res.writeHead(500, {'Content-Type': 'text/plain'}); res.write('Unknown command'); res.end(); } return; } // fallback res.writeHead(404, {'Content-Type': 'text/plain'}); res.write('Not found'); res.end(); }); server.on('clientError', function (err, socket) { // socket.end('HTTP/1.1 400 Bad Request\r\n\r\n'); }); server.listen(http_port); console.log('Arduino Web Serial Console - GameInstance.com'); console.log('Point your favorite browser to: http://localhost:' + http_port + '/'); /* DATA_BUCKET --------------------------------------------------- MAIN_PAGE <html> <head> <meta content="text/html;charset=utf-8" http-equiv="Content-Type"> <meta content="utf-8" http-equiv="encoding"> <title>Arduino Web Serial Console</title> <script src="/js/ajax"></script> <script src="/js"></script> <link href="/css" rel="stylesheet" /> </head> <body onLoad="Load();"> <h3>Arduino Web Serial Console</h3> <form class="pure-form"> <fieldset> <legend>Configuration</legend> Port: <select id="port"> <option disabled selected value>no port available</option> </select> <input type="button" id="refresh" value="Refresh" onClick="GetPortList();" class="pure-button button-green" /> Baud rate: <select id="baud"> <option value="110">110</option> <option value="300">300</option> <option value="1200">1200</option> <option value="2400">2400</option> <option value="4800">4800</option> <option value="9600" selected>9600</option> <option value="14400">14400</option> <option value="19200">19200</option> <option value="38400">38400</option> <option value="57600">57600</option> <option value="115200">115200</option> </select> <input type="button" id="connect" value="Open" onClick="TogglePort();" class="pure-button pure-button-primary" /> <br /><span id="status"></span> <br /><br /> <legend>Console</legend> <input type="text" id="console" value="" size="52" focus onkeypress="return CommandKeyPress(event);" placeholder="Command" /> <input type="button" id="send" value="Send" onClick="Send();" class="pure-button pure-button-primary" /><br /> <textarea id="log" cols="112" rows="10" readonly></textarea><br /> <input type="checkbox" id="autoscroll" checked /> <label for="autoscroll">Auto scroll</label> </fieldset> </form> </body> </html> MAIN_PAGE_END --------------------------------------------------- JS_SCRIPT var connection = false; var probe_interval, last_ts; var Load = function () { // GetStatus(); GetPortList(); var obj = document.getElementById("console"); obj.focus(); obj.scrollIntoView(); }; var GetStatus = function () { // jx.load('/serial|status|', function (data) { // var obj = JSON.parse(data); if (obj.connected) { // Connected(); } else { // Disconnected(); } }); }; var GetPortList = function () { // jx.load('/serial|list|', function (data) { // if (data.substr(5) == 'Error') { // some error alert(data); } else { // var list = JSON.parse(data); select = document.getElementById('port'); select.options.length = 0; var found = false; for (var i = 0; i < list.length; i ++) { // if (list[i].serialNumber) { // an eligible device var opt = document.createElement('option'); opt.value = list[i].name; opt.innerHTML = list[i].name; select.appendChild(opt); found = true; } } if (!found) { // var opt = document.createElement('option'); opt.value = ""; opt.innerHTML = "no port available"; opt.selected = "selected"; opt.disabled = true; select.appendChild(opt); } } }); }; var TogglePort = function () { // if (!connection) { // var port = document.getElementById('port').value; var baud = document.getElementById('baud').value; jx.load('/serial|open|' + port + '|' + baud + '|', function (data) { // if (data == 'Opened') { // Connected(); } else { // some error alert(data); } }); } else { // jx.load('/serial|close|', function (data) { // if (data == 'Closed') { // Disconnected(); } else { // some error alert(data); } }); } }; var Probe = function () { // var ts = last_ts > 0 ? last_ts : 0; jx.load('/serial|read|' + ts + '|', function (data) { // var obj = JSON.parse(data); var textarea = document.getElementById('log'); textarea.value += obj.data; last_ts = obj.ts; if (document.getElementById('autoscroll').checked) { // textarea.scrollTop = textarea.scrollHeight; } }); }; var Connected = function () { // document.getElementById('port').disabled = true; document.getElementById('baud').disabled = true; document.getElementById('connect').value = 'Disconnect'; document.getElementById('status').innerHTML = '<b>Connected</b>'; document.getElementById('console').disabled = false; document.getElementById('send').disabled = false; document.getElementById('refresh').disabled = true; connection = true; probe_interval = setInterval(Probe, 2000); document.getElementById('log').value = ''; }; var Disconnected = function () { // document.getElementById('port').disabled = false; document.getElementById('baud').disabled = false; document.getElementById('connect').value = 'Connect'; document.getElementById('status').innerHTML = '<i>Disconnected</i>'; document.getElementById('console').disabled = true; document.getElementById('send').disabled = true; document.getElementById('refresh').disabled = false; connection = false; clearInterval(probe_interval); }; var CommandKeyPress = function (event) { // if (event.keyCode == 13) { // Send(); return false; } // return true; }; var Send = function () { // var obj = document.getElementById("console"); jx.load('/serial|write|' + obj.value + '|', function (data) { // obj.value = ''; obj.focus(); obj.scrollIntoView(); if (data == 'Ok') { // } else { // alert(data); } }); }; JS_SCRIPT_END --------------------------------------------------- AJAX_SCRIPT // Source: http://openjs.com/scripts/jx/ jx={getHTTPObject:function(){var A=false;if(typeof ActiveXObject!="undefined"){try{A=new ActiveXObject("Msxml2.XMLHTTP")}catch(C){try{A=new ActiveXObject("Microsoft.XMLHTTP")}catch(B){A=false}}}else{if(window.XMLHttpRequest){try{A=new XMLHttpRequest()}catch(C){A=false}}}return A},load:function(url,callback,format){var http=this.init();if(!http||!url){return }if(http.overrideMimeType){http.overrideMimeType("text/xml")}if(!format){var format="text"}format=format.toLowerCase();var now="uid="+new Date().getTime();url+=(url.indexOf("?")+1)?"&":"?";url+=now;http.open("GET",url,true);http.onreadystatechange=function(){if(http.readyState==4){if(http.status==200){var result="";if(http.responseText){result=http.responseText}if(format.charAt(0)=="j"){result=result.replace(/[\n\r]/g,"");result=eval("("+result+")")}if(callback){callback(result)}}else{if(error){error(http.status)}}}};http.send(null)},init:function(){return this.getHTTPObject()}} AJAX_SCRIPT_END --------------------------------------------------- PURE_CSS // Pure v1.0.0 // Copyright 2013 Yahoo! // Licensed under the BSD License. // https://github.com/yahoo/pure/blob/master/LICENSE.md // normalize.css v^3.0 | MIT License | git.io/normalize // Copyright (c) Nicolas Gallagher and Jonathan Neal // normalize.css v3.0.3 | MIT License | github.com/necolas/normalize.css .pure-button:focus,a:active,a:hover{outline:0}.pure-table,table{border-collapse:collapse;border-spacing:0}html{font-family:sans-serif;-ms-text-size-adjust:100%;-webkit-text-size-adjust:100%}body{margin:0}article,aside,details,figcaption,figure,footer,header,hgroup,main,menu,nav,section,summary{display:block}audio,canvas,progress,video{display:inline-block;vertical-align:baseline}audio:not([controls]){display:none;height:0}[hidden],template{display:none}a{background-color:transparent}abbr[title]{border-bottom:1px dotted}b,optgroup,strong{font-weight:700}dfn{font-style:italic}h1{font-size:2em;margin:.67em 0}mark{background:#ff0;color:#000}small{font-size:80%}sub,sup{font-size:75%;line-height:0;position:relative;vertical-align:baseline}sup{top:-.5em}sub{bottom:-.25em}img{border:0}svg:not(:root){overflow:hidden}figure{margin:1em 40px}hr{box-sizing:content-box;height:0}pre,textarea{overflow:auto}code,kbd,pre,samp{font-family:monospace,monospace;font-size:1em}button,input,optgroup,select,textarea{color:inherit;font:inherit;margin:0}.pure-button,input{line-height:normal}button{overflow:visible}button,select{text-transform:none}button,html input[type=button],input[type=reset],input[type=submit]{-webkit-appearance:button;cursor:pointer}button[disabled],html input[disabled]{cursor:default}button::-moz-focus-inner,input::-moz-focus-inner{border:0;padding:0}input[type=checkbox],input[type=radio]{box-sizing:border-box;padding:0}input[type=number]::-webkit-inner-spin-button,input[type=number]::-webkit-outer-spin-button{height:auto}input[type=search]{-webkit-appearance:textfield;box-sizing:content-box}.pure-button,.pure-form input:not([type]),.pure-menu{box-sizing:border-box}input[type=search]::-webkit-search-cancel-button,input[type=search]::-webkit-search-decoration{-webkit-appearance:none}fieldset{border:1px solid silver;margin:0 2px;padding:.35em .625em .75em}legend,td,th{padding:0}legend{border:0}.hidden,[hidden]{display:none!important}.pure-img{max-width:100%;height:auto;display:block}.pure-g{letter-spacing:-.31em;text-rendering:optimizespeed;font-family:FreeSans,Arimo,"Droid Sans",Helvetica,Arial,sans-serif;display:-webkit-box;display:-webkit-flex;display:-ms-flexbox;display:flex;-webkit-flex-flow:row wrap;-ms-flex-flow:row wrap;flex-flow:row wrap;-webkit-align-content:flex-start;-ms-flex-line-pack:start;align-content:flex-start}@media all and (-ms-high-contrast:none),(-ms-high-contrast:active){table .pure-g{display:block}}.opera-only :-o-prefocus,.pure-g{word-spacing:-.43em}.pure-u,.pure-u-1,.pure-u-1-1,.pure-u-1-12,.pure-u-1-2,.pure-u-1-24,.pure-u-1-3,.pure-u-1-4,.pure-u-1-5,.pure-u-1-6,.pure-u-1-8,.pure-u-10-24,.pure-u-11-12,.pure-u-11-24,.pure-u-12-24,.pure-u-13-24,.pure-u-14-24,.pure-u-15-24,.pure-u-16-24,.pure-u-17-24,.pure-u-18-24,.pure-u-19-24,.pure-u-2-24,.pure-u-2-3,.pure-u-2-5,.pure-u-20-24,.pure-u-21-24,.pure-u-22-24,.pure-u-23-24,.pure-u-24-24,.pure-u-3-24,.pure-u-3-4,.pure-u-3-5,.pure-u-3-8,.pure-u-4-24,.pure-u-4-5,.pure-u-5-12,.pure-u-5-24,.pure-u-5-5,.pure-u-5-6,.pure-u-5-8,.pure-u-6-24,.pure-u-7-12,.pure-u-7-24,.pure-u-7-8,.pure-u-8-24,.pure-u-9-24{letter-spacing:normal;word-spacing:normal;vertical-align:top;text-rendering:auto;display:inline-block;zoom:1}.pure-g [class*=pure-u]{font-family:sans-serif}.pure-u-1-24{width:4.1667%}.pure-u-1-12,.pure-u-2-24{width:8.3333%}.pure-u-1-8,.pure-u-3-24{width:12.5%}.pure-u-1-6,.pure-u-4-24{width:16.6667%}.pure-u-1-5{width:20%}.pure-u-5-24{width:20.8333%}.pure-u-1-4,.pure-u-6-24{width:25%}.pure-u-7-24{width:29.1667%}.pure-u-1-3,.pure-u-8-24{width:33.3333%}.pure-u-3-8,.pure-u-9-24{width:37.5%}.pure-u-2-5{width:40%}.pure-u-10-24,.pure-u-5-12{width:41.6667%}.pure-u-11-24{width:45.8333%}.pure-u-1-2,.pure-u-12-24{width:50%}.pure-u-13-24{width:54.1667%}.pure-u-14-24,.pure-u-7-12{width:58.3333%}.pure-u-3-5{width:60%}.pure-u-15-24,.pure-u-5-8{width:62.5%}.pure-u-16-24,.pure-u-2-3{width:66.6667%}.pure-u-17-24{width:70.8333%}.pure-u-18-24,.pure-u-3-4{width:75%}.pure-u-19-24{width:79.1667%}.pure-u-4-5{width:80%}.pure-u-20-24,.pure-u-5-6{width:83.3333%}.pure-u-21-24,.pure-u-7-8{width:87.5%}.pure-u-11-12,.pure-u-22-24{width:91.6667%}.pure-u-23-24{width:95.8333%}.pure-u-1,.pure-u-1-1,.pure-u-24-24,.pure-u-5-5{width:100%}.pure-button{display:inline-block;zoom:1;white-space:nowrap;vertical-align:middle;text-align:center;cursor:pointer;-webkit-user-drag:none;-webkit-user-select:none;-moz-user-select:none;-ms-user-select:none;user-select:none}.pure-button::-moz-focus-inner{padding:0;border:0}.pure-button-group{letter-spacing:-.31em;text-rendering:optimizespeed}.opera-only :-o-prefocus,.pure-button-group{word-spacing:-.43em}.pure-button{font-family:inherit;font-size:100%;padding:.5em 1em;color:#444;color:rgba(0,0,0,.8);border:1px solid #999;border:transparent;background-color:#E6E6E6;text-decoration:none;border-radius:2px}.pure-button-hover,.pure-button:focus,.pure-button:hover{filter:alpha(opacity=90);background-image:-webkit-linear-gradient(transparent,rgba(0,0,0,.05) 40%,rgba(0,0,0,.1));background-image:linear-gradient(transparent,rgba(0,0,0,.05) 40%,rgba(0,0,0,.1))}.pure-button-active,.pure-button:active{box-shadow:0 0 0 1px rgba(0,0,0,.15) inset,0 0 6px rgba(0,0,0,.2) inset;border-color:#000\9}.pure-button-disabled,.pure-button-disabled:active,.pure-button-disabled:focus,.pure-button-disabled:hover,.pure-button[disabled]{border:none;background-image:none;filter:alpha(opacity=40);opacity:.4;cursor:not-allowed;box-shadow:none;pointer-events:none}.pure-button-hidden{display:none}.pure-button-primary,.pure-button-selected,a.pure-button-primary,a.pure-button-selected{background-color:#0078e7;color:#fff}.pure-button-group .pure-button{letter-spacing:normal;word-spacing:normal;vertical-align:top;text-rendering:auto;margin:0;border-radius:0;border-right:1px solid #111;border-right:1px solid rgba(0,0,0,.2)}.pure-button-group .pure-button:first-child{border-top-left-radius:2px;border-bottom-left-radius:2px}.pure-button-group .pure-button:last-child{border-top-right-radius:2px;border-bottom-right-radius:2px;border-right:none}.pure-form input[type=password],.pure-form input[type=email],.pure-form input[type=url],.pure-form input[type=date],.pure-form input[type=month],.pure-form input[type=time],.pure-form input[type=datetime],.pure-form input[type=datetime-local],.pure-form input[type=week],.pure-form input[type=tel],.pure-form input[type=color],.pure-form input[type=number],.pure-form input[type=search],.pure-form input[type=text],.pure-form select,.pure-form textarea{padding:.5em .6em;display:inline-block;border:1px solid #ccc;box-shadow:inset 0 1px 3px #ddd;border-radius:4px;vertical-align:middle;box-sizing:border-box}.pure-form input:not([type]){padding:.5em .6em;display:inline-block;border:1px solid #ccc;box-shadow:inset 0 1px 3px #ddd;border-radius:4px}.pure-form input[type=color]{padding:.2em .5em}.pure-form input:not([type]):focus,.pure-form input[type=password]:focus,.pure-form input[type=email]:focus,.pure-form input[type=url]:focus,.pure-form input[type=date]:focus,.pure-form input[type=month]:focus,.pure-form input[type=time]:focus,.pure-form input[type=datetime]:focus,.pure-form input[type=datetime-local]:focus,.pure-form input[type=week]:focus,.pure-form input[type=tel]:focus,.pure-form input[type=color]:focus,.pure-form input[type=number]:focus,.pure-form input[type=search]:focus,.pure-form input[type=text]:focus,.pure-form select:focus,.pure-form textarea:focus{outline:0;border-color:#129FEA}.pure-form input[type=file]:focus,.pure-form input[type=checkbox]:focus,.pure-form input[type=radio]:focus{outline:#129FEA auto 1px}.pure-form .pure-checkbox,.pure-form .pure-radio{margin:.5em 0;display:block}.pure-form input:not([type])[disabled],.pure-form input[type=password][disabled],.pure-form input[type=email][disabled],.pure-form input[type=url][disabled],.pure-form input[type=date][disabled],.pure-form input[type=month][disabled],.pure-form input[type=time][disabled],.pure-form input[type=datetime][disabled],.pure-form input[type=datetime-local][disabled],.pure-form input[type=week][disabled],.pure-form input[type=tel][disabled],.pure-form input[type=color][disabled],.pure-form input[type=number][disabled],.pure-form input[type=search][disabled],.pure-form input[type=text][disabled],.pure-form select[disabled],.pure-form textarea[disabled]{cursor:not-allowed;background-color:#eaeded;color:#cad2d3}.pure-form input[readonly],.pure-form select[readonly],.pure-form textarea[readonly]{background-color:#eee;color:#777;border-color:#ccc}.pure-form input:focus:invalid,.pure-form select:focus:invalid,.pure-form textarea:focus:invalid{color:#b94a48;border-color:#e9322d}.pure-form input[type=file]:focus:invalid:focus,.pure-form input[type=checkbox]:focus:invalid:focus,.pure-form input[type=radio]:focus:invalid:focus{outline-color:#e9322d}.pure-form select{height:2.25em;border:1px solid #ccc;background-color:#fff}.pure-form select[multiple]{height:auto}.pure-form label{margin:.5em 0 .2em}.pure-form fieldset{margin:0;padding:.35em 0 .75em;border:0}.pure-form legend{display:block;width:100%;padding:.3em 0;margin-bottom:.3em;color:#333;border-bottom:1px solid #e5e5e5}.pure-form-stacked input:not([type]),.pure-form-stacked input[type=password],.pure-form-stacked input[type=email],.pure-form-stacked input[type=url],.pure-form-stacked input[type=date],.pure-form-stacked input[type=month],.pure-form-stacked input[type=time],.pure-form-stacked input[type=datetime],.pure-form-stacked input[type=datetime-local],.pure-form-stacked input[type=week],.pure-form-stacked input[type=tel],.pure-form-stacked input[type=color],.pure-form-stacked input[type=file],.pure-form-stacked input[type=number],.pure-form-stacked input[type=search],.pure-form-stacked input[type=text],.pure-form-stacked label,.pure-form-stacked select,.pure-form-stacked textarea{display:block;margin:.25em 0}.pure-form-aligned .pure-help-inline,.pure-form-aligned input,.pure-form-aligned select,.pure-form-aligned textarea,.pure-form-message-inline{display:inline-block;vertical-align:middle}.pure-form-aligned textarea{vertical-align:top}.pure-form-aligned .pure-control-group{margin-bottom:.5em}.pure-form-aligned .pure-control-group label{text-align:right;display:inline-block;vertical-align:middle;width:10em;margin:0 1em 0 0}.pure-form-aligned .pure-controls{margin:1.5em 0 0 11em}.pure-form .pure-input-rounded,.pure-form input.pure-input-rounded{border-radius:2em;padding:.5em 1em}.pure-form .pure-group fieldset{margin-bottom:10px}.pure-form .pure-group input,.pure-form .pure-group textarea{display:block;padding:10px;margin:0 0 -1px;border-radius:0;position:relative;top:-1px}.pure-form .pure-group input:focus,.pure-form .pure-group textarea:focus{z-index:3}.pure-form .pure-group input:first-child,.pure-form .pure-group textarea:first-child{top:1px;border-radius:4px 4px 0 0;margin:0}.pure-form .pure-group input:first-child:last-child,.pure-form .pure-group textarea:first-child:last-child{top:1px;border-radius:4px;margin:0}.pure-form .pure-group input:last-child,.pure-form .pure-group textarea:last-child{top:-2px;border-radius:0 0 4px 4px;margin:0}.pure-form .pure-group button{margin:.35em 0}.pure-form .pure-input-1{width:100%}.pure-form .pure-input-3-4{width:75%}.pure-form .pure-input-2-3{width:66%}.pure-form .pure-input-1-2{width:50%}.pure-form .pure-input-1-3{width:33%}.pure-form .pure-input-1-4{width:25%}.pure-form .pure-help-inline,.pure-form-message-inline{display:inline-block;padding-left:.3em;color:#666;vertical-align:middle;font-size:.875em}.pure-form-message{display:block;color:#666;font-size:.875em}@media only screen and (max-width :480px){.pure-form button[type=submit]{margin:.7em 0 0}.pure-form input:not([type]),.pure-form input[type=password],.pure-form input[type=email],.pure-form input[type=url],.pure-form input[type=date],.pure-form input[type=month],.pure-form input[type=time],.pure-form input[type=datetime],.pure-form input[type=datetime-local],.pure-form input[type=week],.pure-form input[type=tel],.pure-form input[type=color],.pure-form input[type=number],.pure-form input[type=search],.pure-form input[type=text],.pure-form label{margin-bottom:.3em;display:block}.pure-group input:not([type]),.pure-group input[type=password],.pure-group input[type=email],.pure-group input[type=url],.pure-group input[type=date],.pure-group input[type=month],.pure-group input[type=time],.pure-group input[type=datetime],.pure-group input[type=datetime-local],.pure-group input[type=week],.pure-group input[type=tel],.pure-group input[type=color],.pure-group input[type=number],.pure-group input[type=search],.pure-group input[type=text]{margin-bottom:0}.pure-form-aligned .pure-control-group label{margin-bottom:.3em;text-align:left;display:block;width:100%}.pure-form-aligned .pure-controls{margin:1.5em 0 0}.pure-form .pure-help-inline,.pure-form-message,.pure-form-message-inline{display:block;font-size:.75em;padding:.2em 0 .8em}}.pure-menu-fixed{position:fixed;left:0;top:0;z-index:3}.pure-menu-item,.pure-menu-list{position:relative}.pure-menu-list{list-style:none;margin:0;padding:0}.pure-menu-item{padding:0;margin:0;height:100%}.pure-menu-heading,.pure-menu-link{display:block;text-decoration:none;white-space:nowrap}.pure-menu-horizontal{width:100%;white-space:nowrap}.pure-menu-horizontal .pure-menu-list{display:inline-block}.pure-menu-horizontal .pure-menu-heading,.pure-menu-horizontal .pure-menu-item,.pure-menu-horizontal .pure-menu-separator{display:inline-block;zoom:1;vertical-align:middle}.pure-menu-item .pure-menu-item{display:block}.pure-menu-children{display:none;position:absolute;left:100%;top:0;margin:0;padding:0;z-index:3}.pure-menu-horizontal .pure-menu-children{left:0;top:auto;width:inherit}.pure-menu-active>.pure-menu-children,.pure-menu-allow-hover:hover>.pure-menu-children{display:block;position:absolute}.pure-menu-has-children>.pure-menu-link:after{padding-left:.5em;content:"\25B8";font-size:small}.pure-menu-horizontal .pure-menu-has-children>.pure-menu-link:after{content:"\25BE"}.pure-menu-scrollable{overflow-y:scroll;overflow-x:hidden}.pure-menu-scrollable .pure-menu-list{display:block}.pure-menu-horizontal.pure-menu-scrollable .pure-menu-list{display:inline-block}.pure-menu-horizontal.pure-menu-scrollable{white-space:nowrap;overflow-y:hidden;overflow-x:auto;-ms-overflow-style:none;-webkit-overflow-scrolling:touch;padding:.5em 0}.pure-menu-horizontal.pure-menu-scrollable::-webkit-scrollbar{display:none}.pure-menu-horizontal .pure-menu-children .pure-menu-separator,.pure-menu-separator{background-color:#ccc;height:1px;margin:.3em 0}.pure-menu-horizontal .pure-menu-separator{width:1px;height:1.3em;margin:0 .3em}.pure-menu-horizontal .pure-menu-children .pure-menu-separator{display:block;width:auto}.pure-menu-heading{text-transform:uppercase;color:#565d64}.pure-menu-link{color:#777}.pure-menu-children{background-color:#fff}.pure-menu-disabled,.pure-menu-heading,.pure-menu-link{padding:.5em 1em}.pure-menu-disabled{opacity:.5}.pure-menu-disabled .pure-menu-link:hover{background-color:transparent}.pure-menu-active>.pure-menu-link,.pure-menu-link:focus,.pure-menu-link:hover{background-color:#eee}.pure-menu-selected .pure-menu-link,.pure-menu-selected .pure-menu-link:visited{color:#000}.pure-table{empty-cells:show;border:1px solid #cbcbcb}.pure-table caption{color:#000;font:italic 85%/1 arial,sans-serif;padding:1em 0;text-align:center}.pure-table td,.pure-table th{border-left:1px solid #cbcbcb;border-width:0 0 0 1px;font-size:inherit;margin:0;overflow:visible;padding:.5em 1em}.pure-table td:first-child,.pure-table th:first-child{border-left-width:0}.pure-table thead{background-color:#e0e0e0;color:#000;text-align:left;vertical-align:bottom}.pure-table td{background-color:transparent}.pure-table-odd td,.pure-table-striped tr:nth-child(2n-1) td{background-color:#f2f2f2}.pure-table-bordered td{border-bottom:1px solid #cbcbcb}.pure-table-bordered tbody>tr:last-child>td{border-bottom-width:0}.pure-table-horizontal td,.pure-table-horizontal th{border-width:0 0 1px;border-bottom:1px solid #cbcbcb}.pure-table-horizontal tbody>tr:last-child>td{border-bottom-width:0} .button-green { background: rgb(28, 184, 65); color: white; text-shadow: 0 1px 1px rgba(0, 0, 0, 0.2); } body { font-size: 0.8em; } PURE_CSS_END */
Do make sure you copy and paste the entire code section, including the comments at the end. Keep on reading and you'll see why. Paste it into a new file and name it Arduino_web_console.js . Change path to the location of the file and execute it with the following command: sudo nodejs Arduino_web_console.js . Connect an Arduino to an USB port and click the Refresh button. The port combo-box will now contain the Arduino's serial adapter. If you've played with the Serial Monitor before, it should be straight forward from here.
Web UI
uses nothing but the most basic tools. It relies on HTML, Javascript, a very minimal cross-browser Ajax lib called JX and PureCSS to give the page some soul. All UI resources have been included in the server-side script file. That may seem unusual but that was well premeditated. Dragging static resource files along such a simple app would've just added reasons for it to fail. By the way, the most frequent causes of failure are related to serial port opening permissions and node command not being found.
The script is a great starting point for creating an interface on the NiMH Smart Charger Arduino project. Throwing in some command buttons, canvas based charts and a couple of gauges is one step away. So keep an eye out for updates.
